網是科技(netcore磊科)

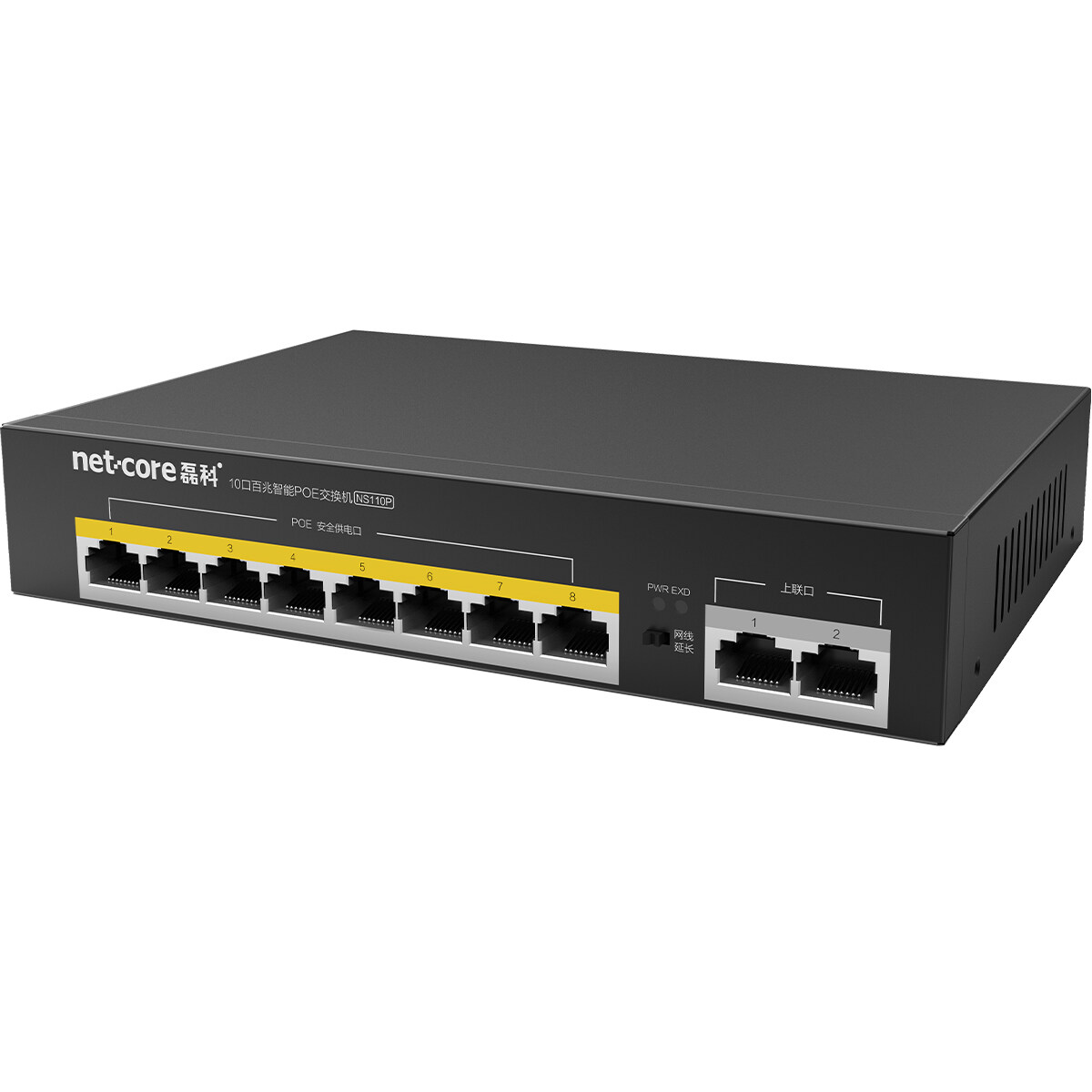

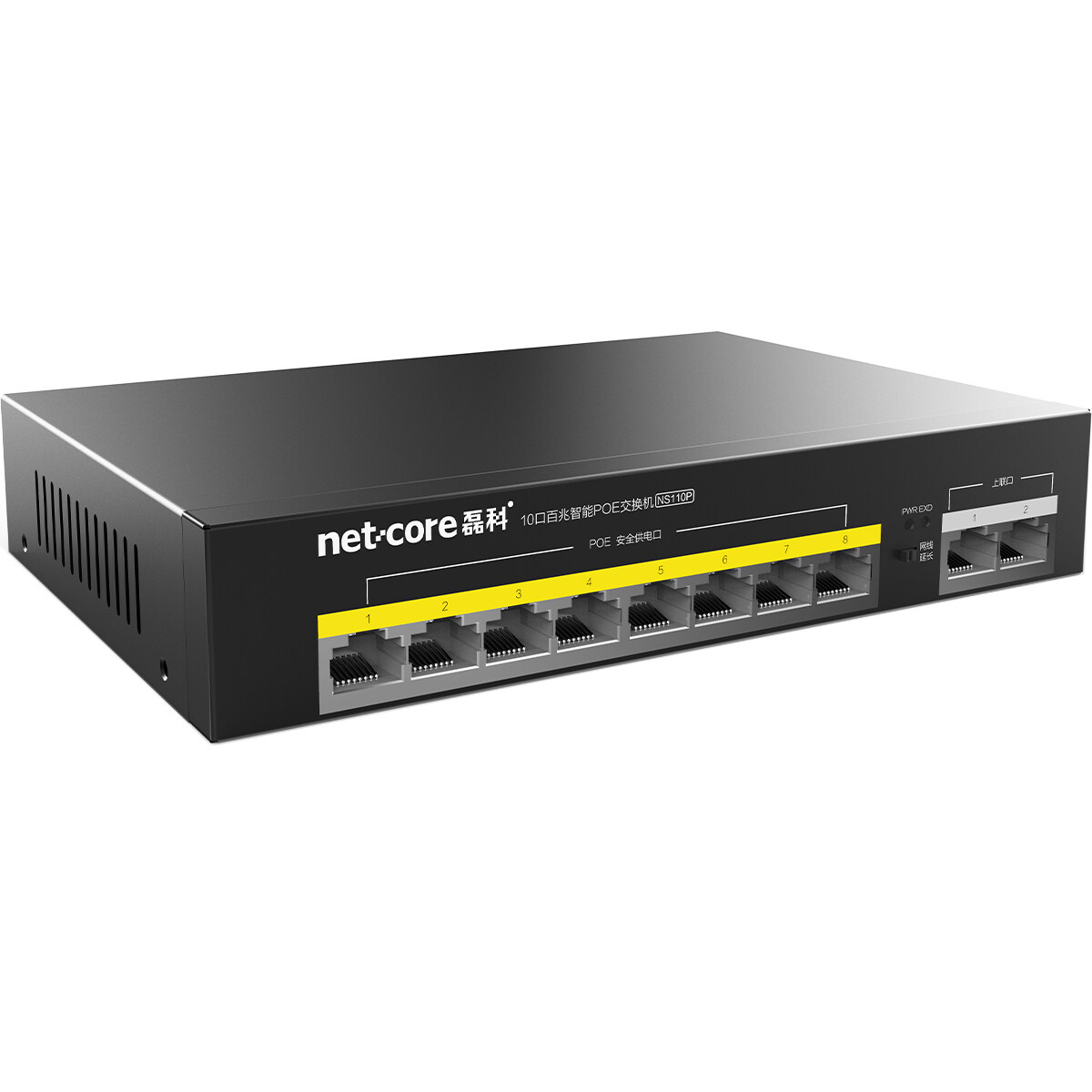

NS110P

2FE POE+2FE Uplink POE Switch

-8FE POE+2FE Uplink POE Switch, machine power 120W

-Support ordinary switch/250M intelligent network cable extension transmission

-Smart Buffer cache optimization for surveillance maximizes switch cache utilization, Reduces picture freezing and port packet loss caused by sudden large video streams on individual ports

-Simple and convenient to use, no configuration required, plug and play, flexibly expand home and office networks without being limited by the power line layout

  • 1
  • 2
  • 3
1
2
3

Product parameters

Product Hardware Specifications

Product model NS110P
Basic functions Follow IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards

Support IEEE802.3at/af standard, compatible with Powered Device (PD) supporting IEEE802.3at/af
Support ordinary switch/250M transmission
All ports support auto rollover function

Support IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control

All ports have wire-speed forwarding capability

Supports self-learning and aging of MAC addresses

Port

8*10/100M POE ports

2*10/100M uplink RJ45 ports

Forwarding mode Store and forward
Backplane bandwidth 2Gbps
MAC address table 2K
Working mode Support ordinary switch/250M transmission
Transfer rate Ethernet 10Mbps half duplex, 20Mbps full duplex
Fast Ethernet 100Mbps half duplex, 200Mbps full duplex
Size 190mm×140mm×43mm
Working environment

Operating temperature: 0°C ~ 40°C

Storage temperature: -40°C ~ 70°C

Operating humidity: 10% ~ 90%, RH  non-condensing

Storage humidity: 5% ~ 90%, RH non-condensing

POE standard

Standard IEEE802.3AF/AT protocol, the maximum power of a single port is 30W, and the maximum power of the machine is 120W

Support overcurrent, overvoltage, short circuit protection

Support high power PD soft start

Support sequential boot

Support certified non-standard PD power receiving

Power AC  input 110V-220V 50/60HZ
Standard protocol

IEEE 802.3

IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3AF Power over Ethernet devices through Ethernet data pairs or devices
IEEE 802.3AT High-power power supply for Ethernet devices through Ethernet data line pairs or devices
